- NoFade Protective Paint
- Weatherproof Design Surpasses Military Standard 883 For Corrosion Resistance
- Designed For Extreme Environmental Conditions And Both UV Exposure And Water Resistance
- Proprietary 4-layer Fiberglass Construction Makes The Cabinet Acoustically Inert And Completely Weatherproof

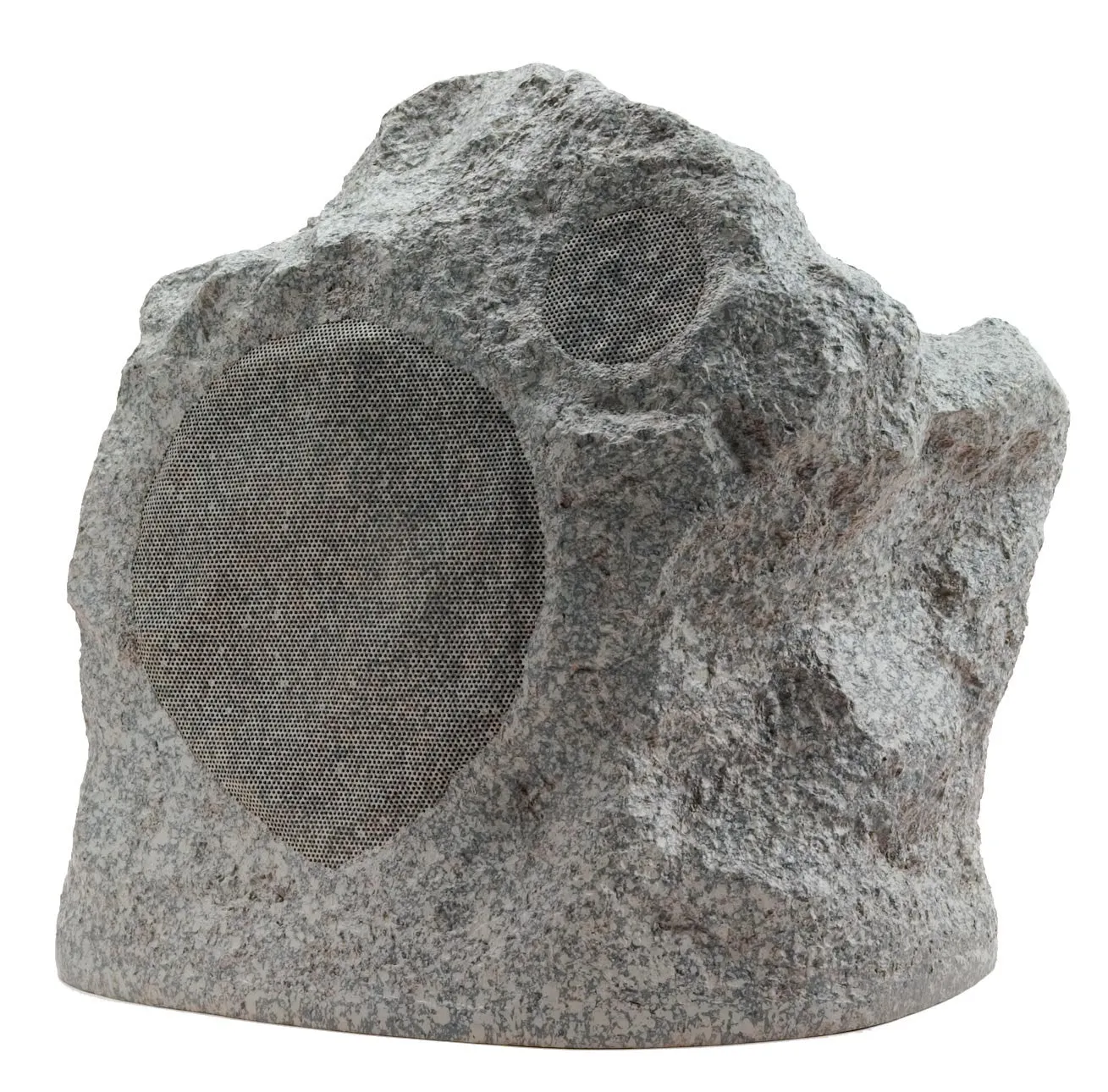

- Artistically Crafted Cabinet With Shaped MicroPerf Aluminum Grilles Looks Natural And Realistic
- 5-1/4" Injection-molded TCC (talc, Carbon, And Ceramic) Filled Polypropylene Cone Is Extremely Rigid To Reduce Breakup And Lower Distortion
- Butyl Rubber Cone Surround Damps Resonance And Provides Exceptional Durability
- Cone Forward Design Positions Drivers Close To The Grille And Ensures Intelligible Midrange
- 3/4" Kaladex Domes With Fluid-cooling And Ultra-wide Dispersion For Clear And Detailed High-frequencies
- Impedance: 8 Ohms
- Recommended Amplifier Power: 10W To 100W
- Frequency Response: 70Hz - 21kHz
- Sensitivity: 89dB For 2.83V Pink Noise
- Dimensions: 9-1/2" High X 10" Wide X 8-1/2" Deep
- Lifetime Limited Warranty
Product Downloads
| General Information | |
| Manufacturer | Niles |
| Manufacturer Part Number | FG01684 |
| Technical Information | |
| Enclosure | Acoustic Suspension |
| Tweeter Type | Dome |
| Woofer Size | 5-1/4" |
| Woofer Composition | Talc-filled Polypropylene |
| Woofer Surround | Butyl rubber |
| Power Range (watts) | 10-100 |
| Sensitivity | 89 dB |
| Impedance (ohms) | 8 |
| Frequency Response | 85-20k Hz |
| Connector Type | Bare wire |
| Height (inches) | 9-5/8" |
| Width (inches) | 9-7/8" |
| Depth (inches) | 8-1/2" |
| Weight (pounds) | 10.3 |
| Mounting Bracket Included | No |
| Warranty | |
| Parts Warranty | Limited Lifetime |
| Labor Warranty | Limited Lifetime |
