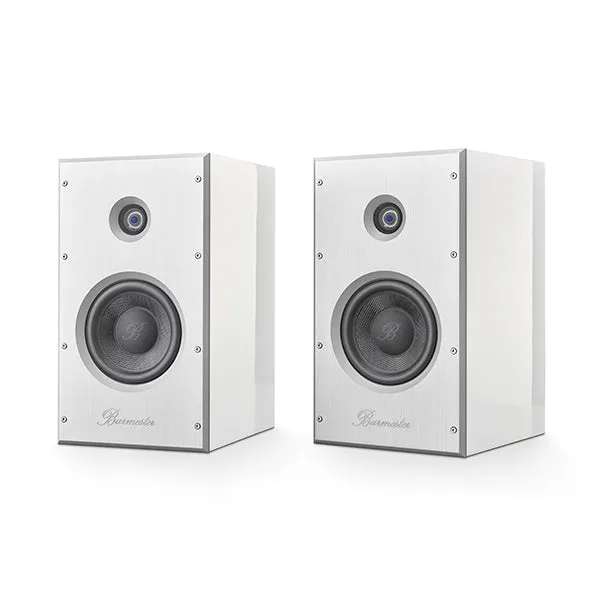

Burmester B10 Bookshelf Loudspeaker (Pair)
ON DISPLAY AT OUR STORE
The B10 loudspeaker blends anywhere while providing an outstanding performance. The loudspeaker is complemented by an unique tweeter with ring-shaped diaphragm for high-frequency reproduction.The original purpose of the B10 loudspeaker was to serve as a near-field monitor in Dieter Burmester’s private recording studio. Its outstanding performance, however, moved Burmester to integrate the B10 into his portfolio as a compact shelf speaker with small space demand and big sound that can be placed almost anywhere. The development of the B10 profited from the experience gained in designing sound systems for Porsche in the automotive field and from cooperation with an automotive supplier. The result is an extremely precise driver for bass and mid-range with a resin-coated glass fiber cone, which showed the best transient response. In addition, a unique tweeter with ring-shaped diaphragm for high-frequency reproduction has been developed, which is now also used in automotive applications.
Design
Its solid aluminum front panel defines the visual appearance of the speaker. It not only conveys the impression of top-flight manufacturing quality but it also determines the sound field dissipation of the tweeter. The cabinet is available in walnut or makassar laminate or in high-gloss white enamel.
Handmade
In the factory the baffle, which up to 48 mm thick, is joined to the solid aluminum front plate. With experience and finesse a layer of felt is placed between the two sections to insulate the cabinet from vibrations that may be introduced to the baffle by the driver.
Specs
Weight 12 kg
Height 394 mm
Wide 221 mm
Depth 317 mm
Nominal load capacity 80 W
Sensitivity at 2.83V/1m 87 dB
Nominal impedance 4 Ω
Frequency response /-3 dB 50 - 24000Hz
High-frequency converter Ring radiator
Low-midrange converter 170 mm glass fibre membrane in bass reflex housing
Cut-off frequency 2300 Hz
