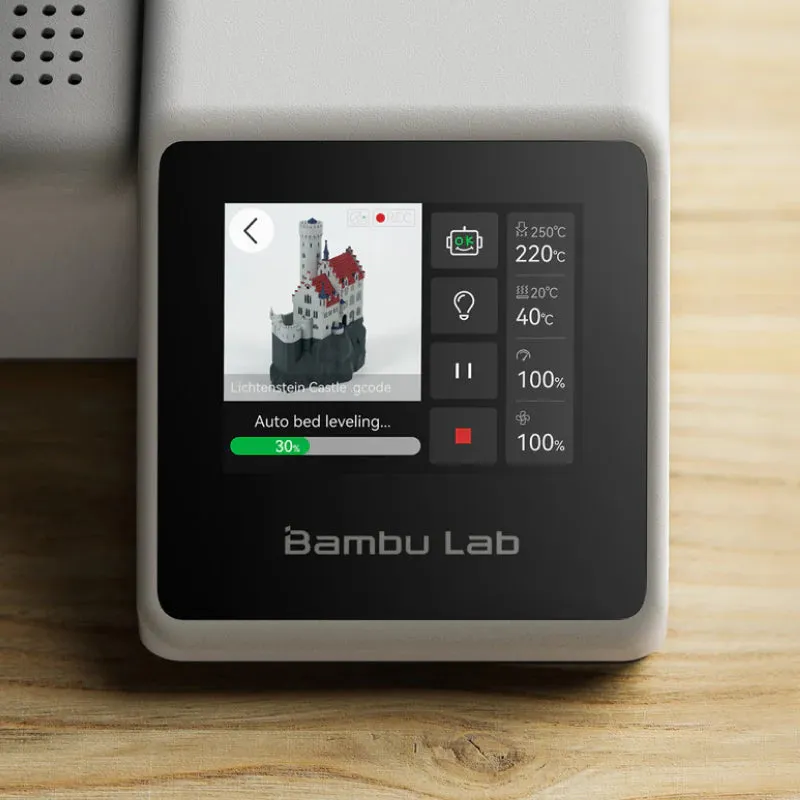

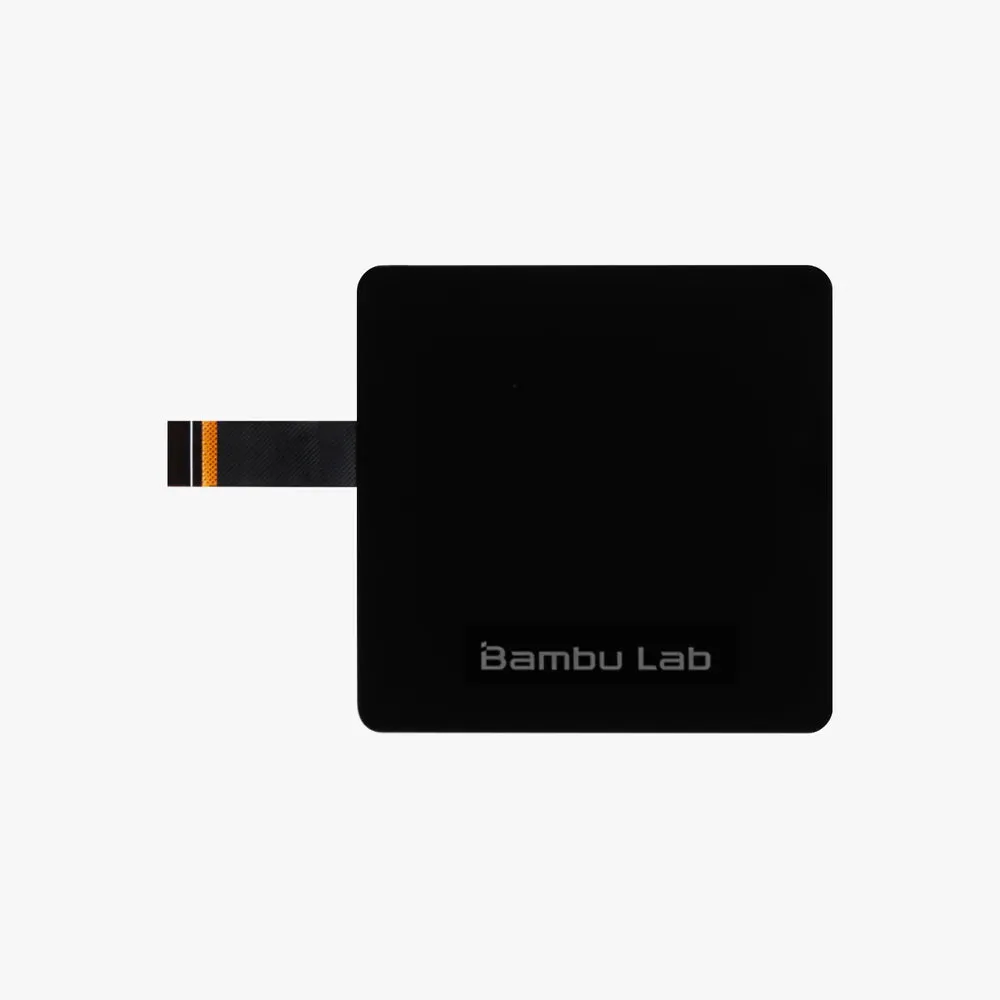

2.4-inch IPS capacitive touchscreen which connects to the Mainboard. Users can control the printer through the touch screen interface.

Compatibility

A1 mini

Specifications

• Resolution: 240(W)*3(RGB)*320(H)
• Display colour: 262K colours
• LED life time: 30,000 hours
• Pixel arrangement: RGB_Stripe
• Screen size: 2.4 inch
• Active area: 36.72(W)*48.96(H) mm
• Interface mode: 4SPI
• Operation temperature: -10~60°C
• Colour: Black

Installation

Learn more about the installation process of the Touch Screen for A1 mini on .
