Note: This is a B2B Product
-Prices are indicative and discounts available based on quantities
-Design services available for these systems. Please contact our team for support on , or .
FEATURES

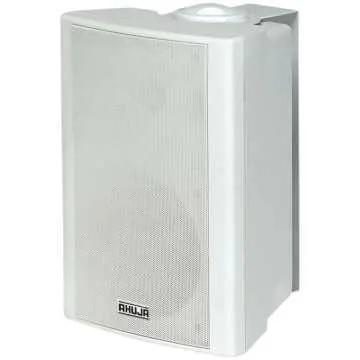

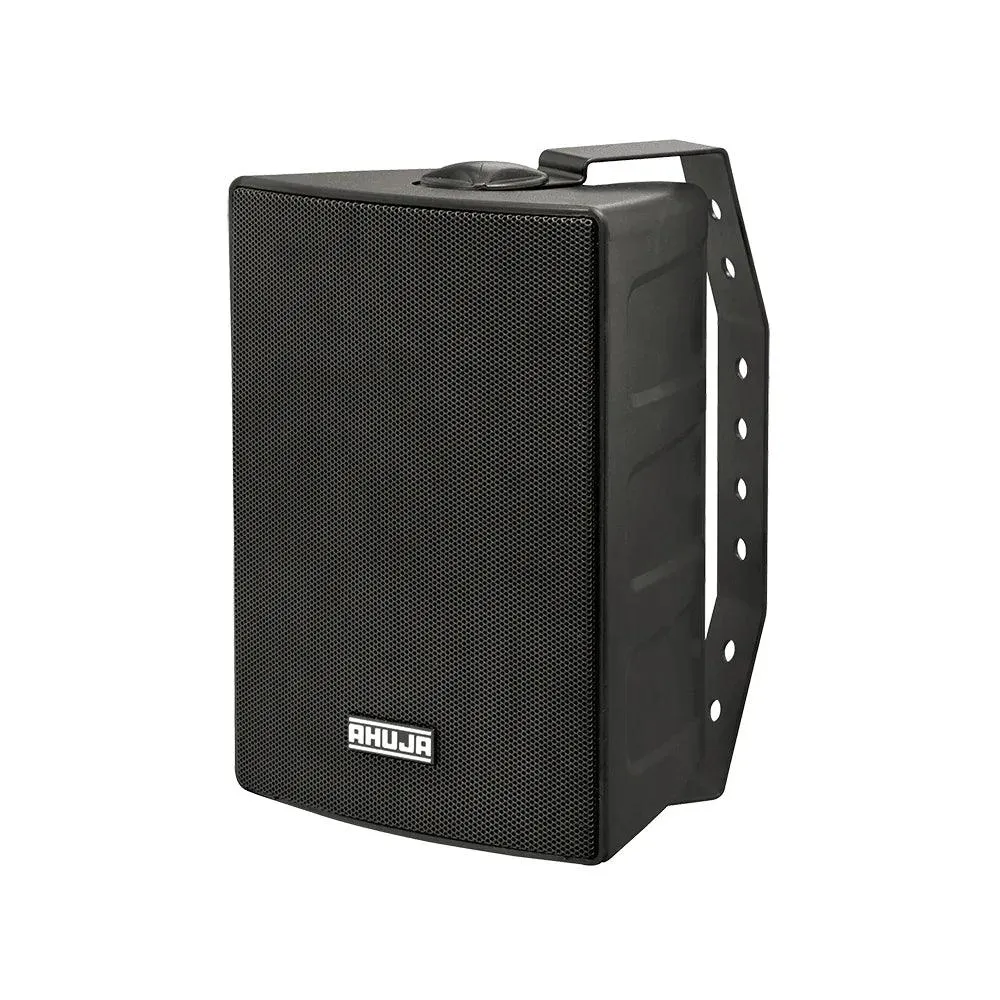

- High fidelity 2-Way speaker system in compact & attractive Black or White plastic housing. The suffix B & BT denote Black cabinet, and W & WT denote White cabinet.
- Comprises of a Water Resistant PP coated cone Woofer, a Titanium Dome Tweeter and a 2-way Crossover Network.
- ASX-612B and ASX-612W are low impedance 8Ω speakers.
- ASX-612BT and ASX-612WT are meant for use on 100V line with power taps of 60W, 40W, 30W, 20W &10W.
- Easy power tap selection through a slotted rotary switch knob at the rear.
- ‘U’ type bracket for convenient & firm mounting of the wall speaker.
- Ideal for various indoor and outdoor applications in Airports, Banks, Schools, Hotels, Hospitals, Showrooms etc.
SPECS
Power Rating | 60W RMS/90W Max. |
Power Taps | 60W, 60/40/30/20/10W |
Impedance/Voltage | 8Ω / 100V |
Frequency Response | 50-20,000Hz |
SPL at 1kHz (1W/1m) | 87dB |
Speaker | Woofer 163mm (6½”), Tweeter 25mm (1”) |
Dimensions | W215 × H310 × D175 mm |
Weight | 3.22kg/3.80kg |
